VERSATILE SERIES

AUTOMATIC L-SEALERS

Proven reliable over and over again, Streamline Solutions’ VSA1825 Auto L-Sealer will handle the day to day operation required for automatic sealing and provide you with all the quality features found in much higher priced machines. They are designed and built to give you the performance needed for positive sealing a wide variety of films including polyolefin and polyethylene.



We have centerfold film in different sizes and styles to accompany our automatic l-sealer machines!

VSA1825-Auto-L-Sealer-1

L-BAR SEALING MACHINE

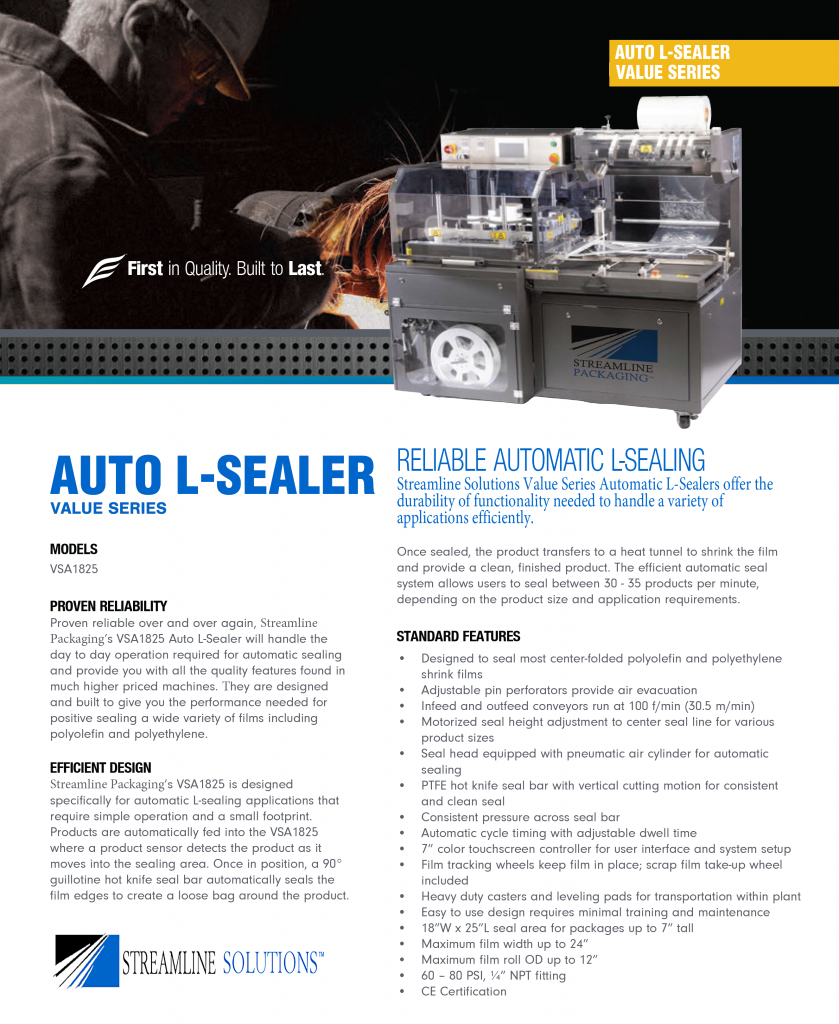

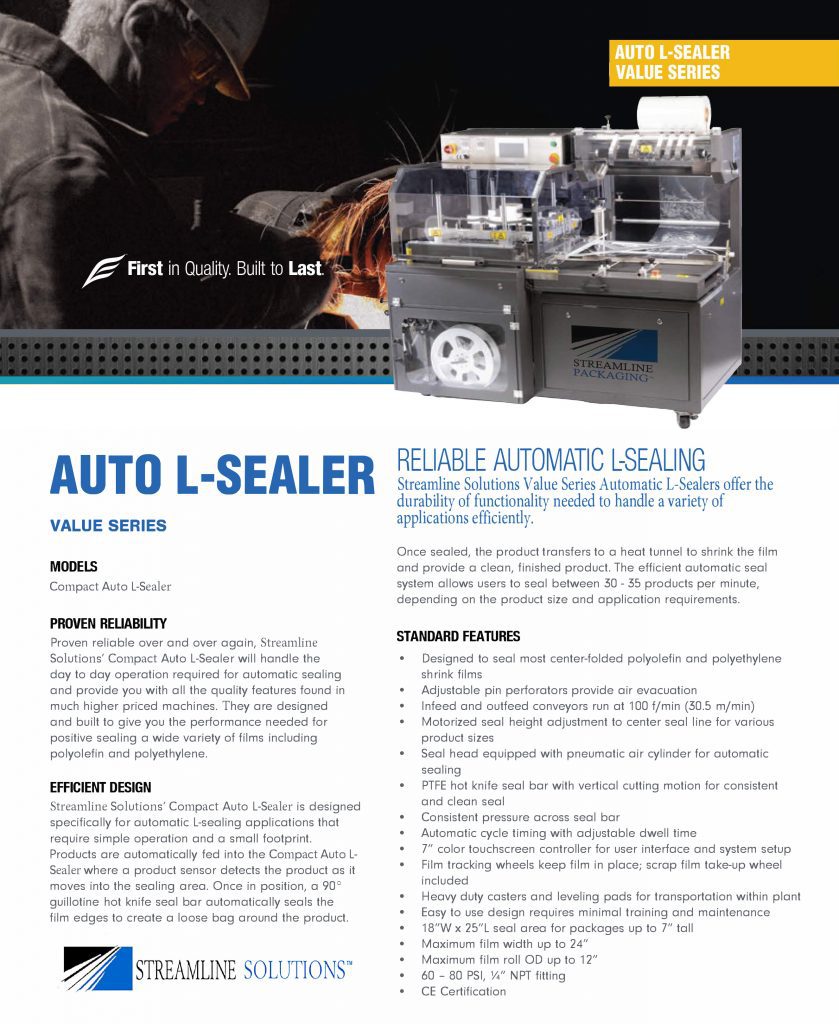

Download (2 pages)

Features

  • Designed to seal most polyolefin, polyethylene, and PVC shrink films
  • All-welded main frame from 12 gauge steel
  • Normal speed infeed and outfeed conveyors
  • High speed with product indexing
  • Motorized seal height adjustment for various product sizes
  • Seal head equipped with pneumatic air cylinder for automatic sealing
  • Designed to seal most center-folded polyolefin and polyethylene shrink films
  • Adjustable pin perforators provide air evacuation
  • Infeed and outfeed conveyors run at 100 f/min (30.5 m/min)
  • Motorized seal height adjustment to center seal line for various product sizes
  • Seal head equipped with pneumatic air cylinder for automatic
    sealing
  • PTFE hot knife seal bar with vertical cutting motion for consistent and clean sea
  • Consistent pressure across seal bar
  • Automatic cycle timing with adjustable dwell time
  • 7” color touchscreen controller for user interface and system setup
  • Film tracking wheels keep film in place; scrap film take-up wheel included
  • Heavy duty casters and leveling pads for transportation within plant
  • Easy to use design requires minimal training and maintenance
  • 18”W x 25”L seal area for packages up to 7” tall
  • Maximum film width up to 24”
  • Maximum film roll OD up to 12”
  • 60 – 80 PSI, ¼” NPT fitting
  • CE Certification
Equip Add

EQUIPMENT OPTIONS

Download (14 pages)

PROFESSIONAL LINEN PRESENTATION

EQUIPMENT DESIGNED FOR SPEED & EFFICIENCY

WITH A PROFESSIONAL PRESENTATION

Hot Knife Seal Bar – Vertical cutting motion with PTFE hot knife delivers a consistent seal every time

Multiple Pin Perforators – Adjustable pin perforators provide air evacuation during shrink process

Film Inverter – Opens film to create a loose bag around the product

7” Color Touchscreen – User interface features simple menus for easy operation and adjustments required for a variety of applications

Scrap Wind Roller – Take-up wheel for safe and convenient removal of scrap film

Exit Conveyor – Provides a smooth transition from the sealer to the shrink tunnel
